Classic Range Rover V8 Engine Rebuilds in Blackheath, West Midlands

Coolant disappearing with nothing on the driveway. Mayonnaise under the oil cap. A tap from one cylinder that wasn't there last summer. Or a head gasket job that came back three months after you paid for it. On a pressed-in-liner Rover V8 those symptoms have three different root causes, and guessing which one costs far more than testing.

We rebuild Classic and early Range Rover V8s from our workshop in Blackheath, on the Rowley Regis side of Sandwell, and collect across the Black Country. Forty years on these engines specifically — 3.5, 3.9, 4.0, 4.2, 4.6 — not modern JLR diesels, not 5.0 superchargers.

Start Here: Is It Actually the Head Gasket?

Three failures that look identical

Overheating plus combustion gas in the coolant is produced by all three of: a failed head gasket, a cracked or warped cylinder head, and a slipped cylinder liner. A slipped liner is routinely misdiagnosed as a head gasket because the symptoms are indistinguishable from the driver's seat. That is why "we did the gasket and it came back" is so common on the Rover V8 — the shop replaced a consumable when the block itself had moved.

What we look for before we quote

• The "steam-cleaned" bore. A slipped-liner cylinder often looks unnaturally clean, because coolant is entering it and being flashed out through the exhaust. That's your coolant loss with no external leak.
• Witness marks on the gasket. Where a liner has risen it hammers a visible impression into the underside of the head gasket. It's one of the clearest pieces of evidence there is, and it only shows on strip-down.
• Noise, isolated to one cylinder. Liner movement, a collapsed hydraulic follower, cam and rocker wear, and a leaking exhaust manifold all tap. They don't tap the same way, and they don't cost the same to fix.
• The right test for the right question. A cooling-system pressure test, a combustion-gas sniffer test and a cylinder leak-down test each prove something different. We tell you what each one rules in and out before you spend money on any of them.

Figures we work to

We publish the accept/reject numbers we build to — compression band and maximum cylinder-to-cylinder variance, leak-down percentage, bore taper and ovality limits before a rebore becomes mandatory, head flatness and skim limits, and our main and big-end running clearances. Ask for the current sheet and compare it against your own compression readings. We won't quote you forum numbers; these are our workshop figures.

Why cheap gasket repairs fail here

The documented pattern on Rover/Buick alloy V8s is failure either immediately or within a few months, because the underlying cause was internal — liner or block — and the gasket was a symptom. A growing number of general garages now decline Rover V8 head and valve work altogether. If you've rung round Blackheath, Oldbury and Halesowen and been turned away, that's why.

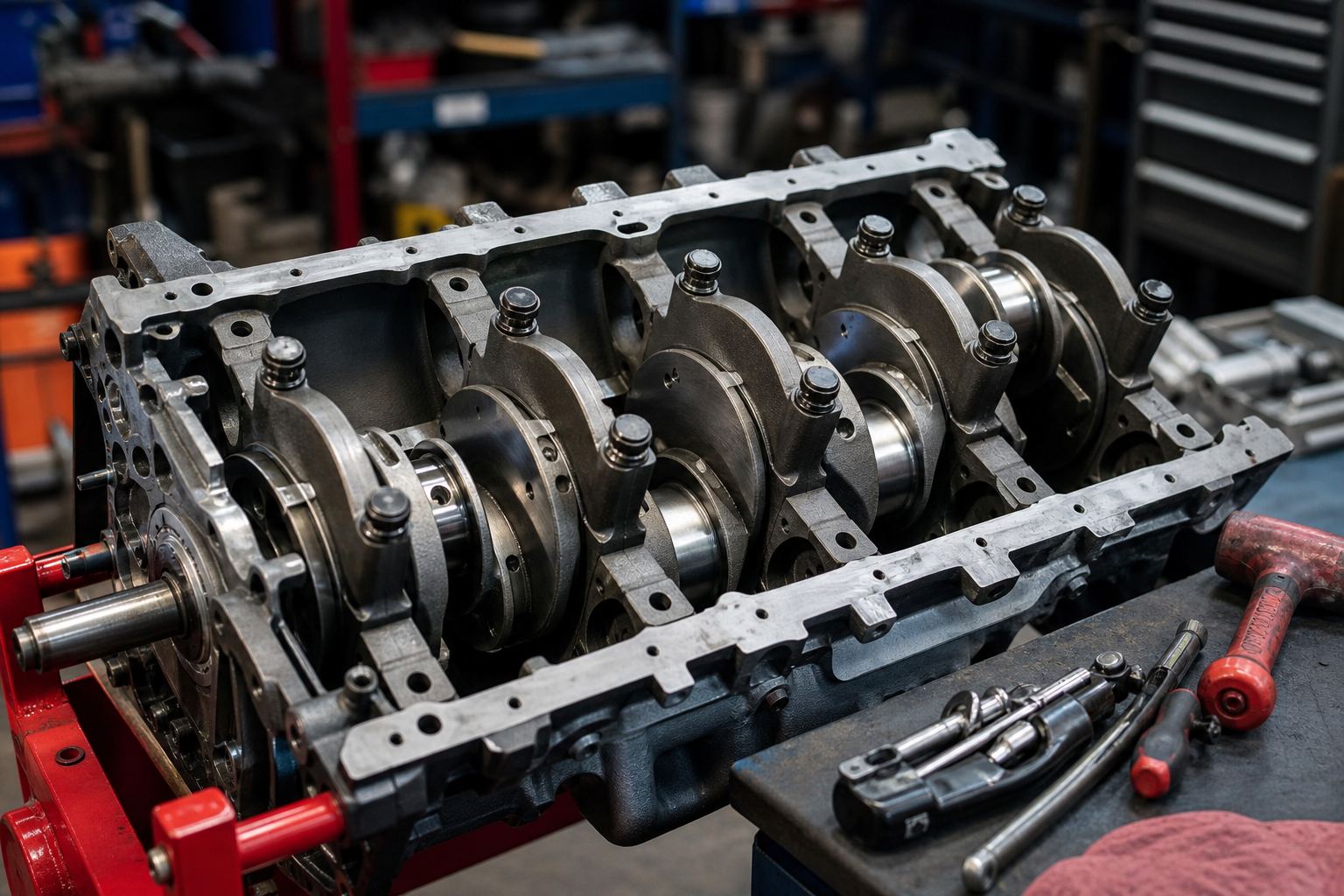

What a Rebuild From Us Includes

Fixed-fee strip, clean and report — before any rebuild price

No "from £X". The engine comes out, gets stripped and cleaned, and you get a report: crack test, bore measurements, liner condition, deck condition, crank measurements, head assessment, photographs, and a costed decision with options. You then decide. No open-ended bill.

Block salvage: top-hat liners, cross-bolting, line-honing

Top-hat liners are the accepted permanent cure for liner slip — the flange sits captive under the head, so the liner physically cannot rise. Owners on the V8 forums ask one question above all others about this job: O-ring sealed or bedded in sealant? Ask us directly and we'll tell you exactly how we seal ours and why. Liner work is followed by a main line-hone, and new core plugs go in as standard on every build.

Honest counter-evidence: top-hat conversions can still fail if the cause behind the original failure isn't fixed. Documented cases exist of converted blocks dumping coolant again within a few hundred miles because the cooling system, cylinder heads or compression ratio were never addressed. We address all three or we don't warrant the build.

When a block isn't worth saving

Porosity, cracks into the water jacket and unrecoverable deck height end the conversation. Late 4.2 blocks carry a reputation among owners for casting accuracy at the end of the original 3.5 casting run — we treat that as a list of things to measure on your 4.2, not as gossip. Where a seasoned block checks out, it's usually worth saving over an unknown replacement.

Heads, valve train and machining

Skim, pressure test, valves, guides, seats, springs, rockers, shafts, pushrods and followers. On power: cam choice, head work, compression ratio and correct fuelling make the difference. Balancing and blueprinting a road V8 largely doesn't — we'll say so rather than sell it. We'll also tell you plainly which operations (rebore, hone, crank grind, head skim, pressure test, liner conversion, line-hone) are done in-house and which go to a named partner, with the tolerance held.

The Cooling System Is Part of the Engine Job

We don't hand a freshly built engine back into a cooling system that killed the last one. Radiator condition and flow, viscous fan clutch, thermostat, water pump, hoses, pressure cap, coolant type and mix are all signed off before the vehicle leaves.

Stop-leak is a particular problem. The classic sequence we see is a failed viscous coupling, a damaged radiator, then sealant poured in to buy time — which blocks the matrix and heater core and turns a radiator bill into a much larger one. If we find sealant in your system we'll show you, and tell you what it takes to flush it properly. We also specify coolant rather than tap water: scale and hot-spotting at the liner tops is precisely what you don't want in an alloy block.

Why This Area Is Hard on These Engines

Gradients and heat-soak

Blackheath and Rowley Regis sit on the high ground of the Rowley Hills, around Turner's Hill — some of the steepest sustained running in the Black Country. Add stop-start work on the A4123, A459 and A4034, and slip-road loading at M5 J2 Oldbury and J3 Quinton, and you have the repeated heat-soak cycle that lifts liners and pushes head gaskets. It is not a coincidence that overheat failures cluster in hot spells and under load.

Salt, and why we always fit new core plugs

Sandwell and Dudley grit these hill routes hard through winter. Corrosion at steel-to-alloy interfaces, degraded hoses and rotten core plugs are routine on cars used through it — which is why core plugs are replaced on every build, not just when they leak.

Black Country supply chain, not a courier from Essex

Most of the rebuild specialists ranking for these searches are based in Essex and collect nationally "for a small fee". We're in the same conurbation as John Craddock at Bloxwich, Walsall for Land Rover parts, and we source specialist rebuild spares from Turner Engineering. Local machining trades are reachable the same day. The Rover V8 itself was built at Solihull, roughly twenty miles east.

Where we collect from

• Blackheath, Rowley Regis, Old Hill, Cradley Heath, Whiteheath Gate, Langley
• Oldbury, Tividale, Warley, Netherton, Dudley
• Halesowen, Hasbury, Quinton — and further afield by arrangement

Nowhere to Keep It? Storage and Logistics

Much of Rowley Regis, Old Hill and Cradley Heath is Victorian and Edwardian terrace with narrow entries, or inter-war semis with a single narrow garage at best. A part-stripped Range Rover cannot sit on that sort of drive for the length of a rebuild. Two ways round it: vehicle-in, where we store the car, remove and rebuild the engine, refit and road-test it; or engine-out, where you deliver the unit only, or we collect it.

Sequence is: strip and report, your decision, machining, build, fit, road test, then run-in and a re-check. We'll give you our current lead times and the re-check interval in writing when you book, and we'll handle SORN and laid-up storage paperwork sensibly while the car is with us — a documented rebuild is also worth raising with your agreed-value insurer.

Rebuild, Replace, or Walk Away

Rebuilding your own block makes sense when it's a seasoned block with good history, matching numbers, an agreed-value policy and a capacity you want to keep. A donor engine wins when the block is cracked or unrecoverable, the vehicle's value sits below the build cost, or you need it back quickly. We'll tell you which side of that line you're on before you commit.

Our pricing is structured so you can compare like with like:

• Fixed-fee strip, clean and report — priced up front.
• Tier A — refresh: re-ring, re-shell, hone.
• Tier B — full standard rebuild: rebore or hone plus head overhaul.
• Tier C — block salvage: top-hat liners, with or without cross-bolting.
• Tier D — capacity increase: 3.5 to 3.9, 4.0, 4.2 or 4.6.
• Machining line items priced separately — rebore, hone, crank grind, head skim, pressure test, liner conversion, line-hone.

Warranty on a forty-year-old engine is conditional, and we say so: term and mileage are stated on your invoice, and cover depends on the cooling system being brought up to spec and the run-in schedule being followed.

MOT Exemption, Historic Tax Class and the Birmingham CAZ

Blackheath sits on the Birmingham commuter belt, so this matters more here than it does to a rebuilder two counties away.

• Birmingham's Clean Air Zone has been live since 1 June 2021 and is enforced 24 hours a day, 365 days a year — there is no early-morning workaround. The charge for cars is £8 per day.
• Vehicles in the historic tax class are exempt. Cars built in 1981 or earlier could apply for exemption.
• MOT exemption applies from the date the vehicle turns 40, provided it has not been substantially altered — assessed against changes made in the last 30 years. The first application for historic tax class must be made at a Post Office, and the MOT-exemption declaration is made on form V112.

The practical local split: an early Classic in historic tax class drives into Birmingham free; a later Classic that hasn't yet turned 40 does not. And yes — a 3.5 to 4.6 stroker or a non-original engine spec can bear on the substantial-change assessment. We'll go through the current DfT wording with you before you commit to a capacity increase, rather than after. Post-rebuild we'll also talk through E10 fuel and whether your car is on carburettors or Lucas hot-wire injection, since fuelling has to be set up again after any cam or compression-ratio change.

Best Time to Book

November to February is the build window. Most Classics are SORN'd or laid up anyway, so a winter rebuild costs you no usable season and keeps the car off salted Sandwell and Dudley hill routes. If you want it out for spring and summer events, work back from build time plus machining lead time — ring us for this year's book-by date. Before laying a car up, do the coolant test and oil change first, not in spring: standing damage means bore and liner corrosion, stale fuel and dry cam-follower starts. And if you're keeping the car on the road through summer, a pre-summer cooling audit is the cheap job that prevents the expensive one.

FAQ

How can I tell a slipped liner from a head gasket without stripping the engine?

You can build a strong case but not a certainty. Coolant loss with no external leak, one bore that looks unnaturally clean on a borescope, and a positive combustion-gas test point at a liner. A leak-down test and cooling-system pressure test narrow it further. Confirmation comes off the gasket face — a risen liner leaves a hammered witness mark.

My head gasket was done a few months ago and it's failed again. Why?

Almost always because the gasket wasn't the fault. On these engines a slipped liner or a cracked head produces identical symptoms, and replacing the gasket alone puts a new consumable on top of an unfixed problem.

Are top-hat liners a permanent fix, and do you use O-rings or sealant?

Correctly fitted top-hat liners are the accepted permanent cure for liner slip, because the flange is trapped under the head. They can still fail if the cooling system, heads or compression ratio that caused the original problem are ignored — so we address those in the same job. Ask us directly about our sealing method; we'll give you a straight answer.

What will a rebuild cost, and will you give me a fixed price?

You get a fixed price for the strip, clean and report first. Once we've measured your block, crank and heads, you get a fixed rebuild price against Tier A, B, C or D, with machining itemised. No open-ended bills.

Will going to 4.6 affect my MOT exemption or historic tax class?

It can. Vehicle of Historical Interest status is assessed on substantial change within the last 30 years, and engine specification forms part of that assessment. We'll go through the current guidance with you before you order a capacity increase.

I've no garage — can you keep the car while you rebuild it?

Yes. Most of our Rowley Regis, Old Hill and Cradley Heath customers have no room to store a part-stripped vehicle. We collect, store, rebuild, refit and road-test, then return the car.

Book a Fixed-Fee Strip, Clean and Report

Tell Atkinson Bespoke Engineering Ltd the symptoms — coolant loss, mayo in the oil, overheating, a tap from one cylinder — and we'll tell you what to test before you spend anything on parts. Call the Blackheath workshop or send the details through the contact form, and we'll arrange collection across Sandwell, Dudley and Halesowen, or take the engine in on its own if you'd rather keep the vehicle at home. Forty years on Classic and early Range Rover V8s, one point of contact from strip to road test.
